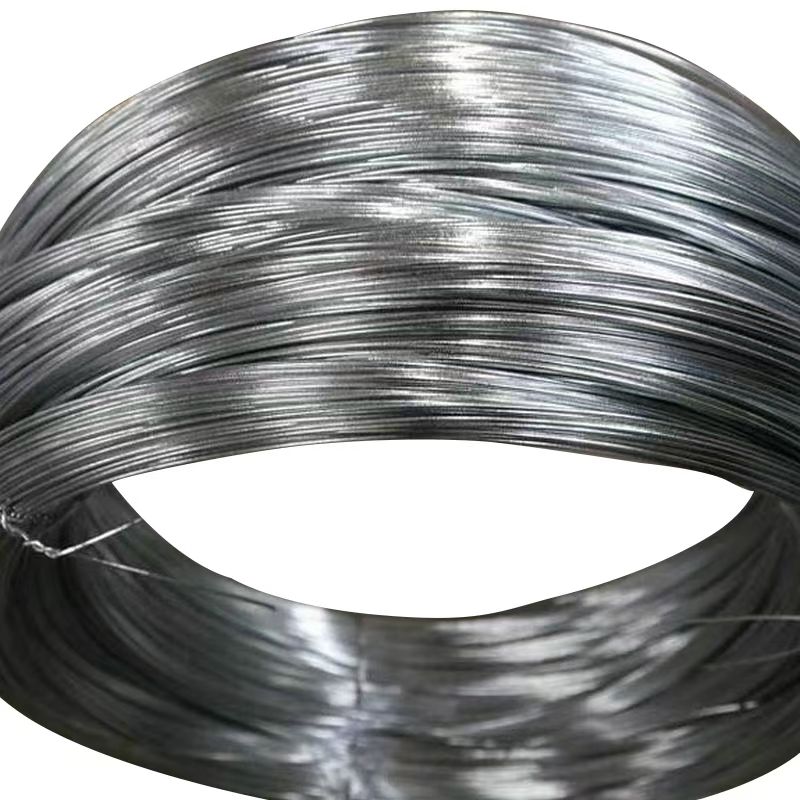

Gwifren Dur Di-staen 2mm
1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597, 1.4541, ac ati.
2) Safon: ASTM, EN, DIN, JIS
3) Diamedr: 0.05-20mm
4) Arwyneb: ansawdd llachar, plaen, du, diflas ac EPQ
Manylebau
1) Gradd: 201, 202, 301, 303, 304, 304L, 305, 316, 316L, 321, 410, 416, 420, 430…
1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597, 1.4541, ac ati.
2) Safonol: ASTM, EN, DIN, JIS
3) Diamedr: 0.05-20mm
4) Arwyneb:llachar, plaen, du, diflas ac ansawdd EPQ
5) Math:gwanwyn, weldio, tig, mig ac ati
meddal a chaled
6) Cryfder tynnol:meddal (650-850N/mm2) a chaled (tua 2000N/mm2)
7) Pacio: mewn Coil neu yn Sbwlio yna mewn Carton neu Sythu a thorri i hyd addasu.
8) Sicrwydd ansawdd:Darperir Tystysgrif Prawf Melin gyda llwyth, mae Arolygiad Trydydd Parti yn dderbyniol
Cais Cynnyrch
Gydag arwyneb llachar, ychydig o fagnetedd a dim craciau wrth ffurfio, fe'i defnyddir yn helaeth mewn ffitiadau beic, offer cegin a glanweithdra, silff nwyddau, cewyll anifeiliaid anwes, raciau tagell, dolenni a basgedi addurniadol, mynedfeydd bwyd a pheiriannau meddygol, ac ati.
|
Enw Cynnyrch |
dur di-staen Welding Wire |
|
Safonol |
AISI, ASTM, DIN, GB, JIS, SUS |
|
Gradd |
201,202,302,304,304L,316,316L,316Ti,310S,2080,430,317,347,410,Monel400,etc |
|
Diamedr |
0.02mm-14mm |
|
Cyflwr |
gwifren feddal, lled-gwifren feddal, gwifren galed |
|
Cais |
1). Gwifren glymu, pinnau, lashing, gwifren ffurfio, hidlwyr, gasgedi, codwyr, gwifren diogelwch, gwifren siâp a fflat. 2). Cludwyr, gemwaith, |
|
Arwyneb |
electrolysis llachar, llachar, di-sglein. |
|
Math AISI |
C Uchafswm % |
Mn Uchafswm % |
P Max % |
S Max % |
Si Max % |
Cr % |
Ni % |
Mo % |
|
201 |
0.15 |
5.50-7.50 |
0.06 |
0.03 |
1 |
16.000-18.00 |
0.5 |
– |
|
202 |
0.15 |
7.50-10.00 |
0.06 |
0.03 |
1 |
17.00-19.00 |
3.-0-5.00 |
– |
|
204Cu |
0.08 |
6.5-8.5 |
0.06 |
0.03 |
2 |
16.0-17.0 |
1.5-3.0 |
– |
|
302 |
0.15 |
2 |
0.045 |
0.03 |
1 |
17.00-19.00 |
8.00-10.00 |
– |
|
302HQ |
0.03 |
2 |
0.045 |
0.02 |
1 |
17.00-19.00 |
9.00-10.00 |
– |
|
304Cu |
||||||||
|
304HC |
0.04 |
0.80-1.70 |
0.04 |
0.015 |
0.3-0.6 |
18-19 |
8.5-9.5 |
– |
|
303 |
0.07 |
2 |
0.045 |
0.25 Munud |
1 |
17-19 |
8.0-10.0 |
0.6 |
|
304 |
0.08 |
2 |
0.045 |
0.03 |
1 |
18.00-20.00 |
8.0-10.50 |
– |
|
304L |
0.03 |
2 |
0.045 |
0.03 |
1 |
18.00-20.00 |
8.00-12.00 |
– |
|
310S |
0.055 |
1.5 |
0.04 |
0.005 |
0.7 |
25.0-28.0 |
19-22 |
– |
|
314 |
0.25 |
2 |
0.045 |
0.03 |
1.50-3.00 |
23.00-26.00 |
19.00-22.00 |
– |
|
316 |
0.06 |
2 |
0.045 |
0.03 |
1 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
|
316L |
0.03 |
2 |
0.045 |
0.03 |
1 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
|
316Ti |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
|
347 |
0.08 |
2 |
0.045 |
0.03 |
1 |
17.00-19.00 |
9.00-13.00 |
– |
|
321 |
0.06 |
2 |
0.045 |
0.01 |
.40-.60 |
17-19.00 |
9.4-9.6 |
– |
|
ER308 |
0.08 |
2 |
0.045 |
0.03 |
1 |
17-19 |
9.5-13.0 |
– |
|
ER308L |
0.025 |
1.50/2.00 |
0.025 |
0.02 |
0.5 |
19.0/21.0 |
9.5/11.0 |
– |
|
ER309 |
0.08 |
1.50/2.50 |
0.02 |
0.015 |
0.5 |
23.0/25.0 |
20.0/14.0 |
– |
|
ER309L |
0.025 |
1.50/2.50 |
0.02 |
0.015 |
0.5 |
23.0/25.0 |
12.0/14.0 |
– |
|
ER316L |
0.02 |
1.50/2.00 |
0.02 |
0.02 |
0.5 |
18.0/20.0 |
12.00-14.00 |
2.00-3.00 |
|
430L |
0.03 |
1 |
0.04 |
0.03 |
1 |
16.00-18.00 |
– |
|
|
434 |
0.08 |
1 |
0.04 |
0.03 |
1 |
16.00-18.00 |
– |
0.90-1.40 |
